全铜连接管
全铜空调连接管
Insulated Copper Connection Tubing for Air-Conditioner
空调连接管用于连接空调室外机和室内机进行冷热交换，由高质量紫铜管，保温管和黄铜螺母制成，长度和厚底可以按照客户要求生产。
Copper connection tubing used for connecting the indoor and outdoor of air conditioners, it is made of higher quality copper tube, Insulation tube and brass nuts, the length and wall thickness can follow client’s specifications.

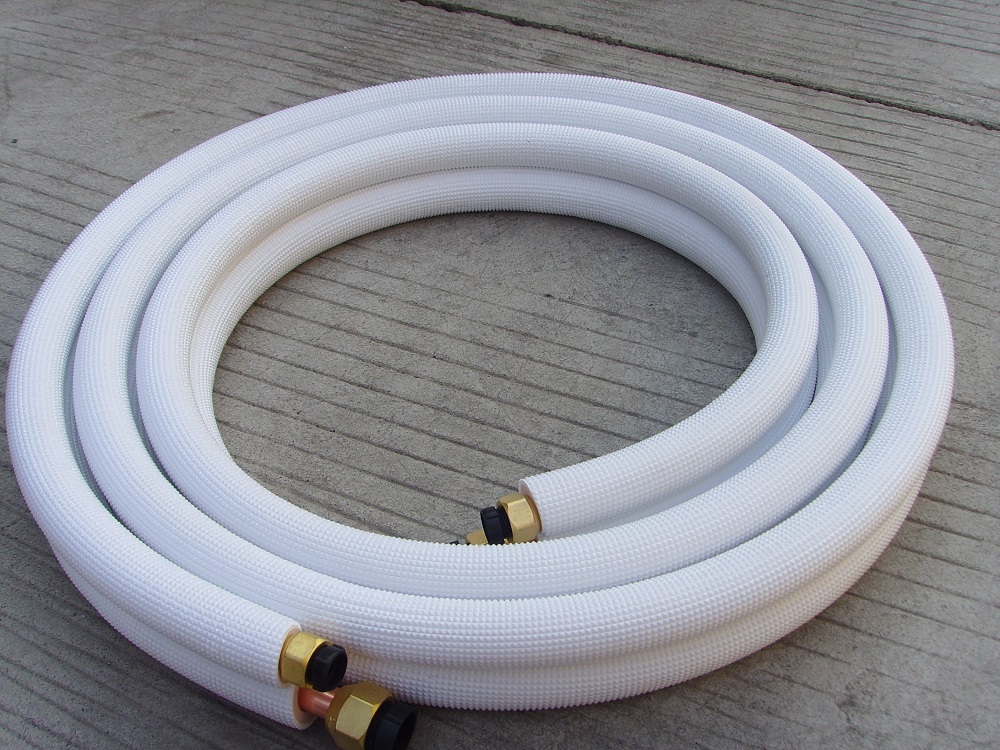

空调连接管(复合保温管)
Copper Connection Tube (with Double-layer PE insulation)
常用空调全铜连接管尺寸 Specifications for Standard Copper connecting Pipe:
|
空调连接管型号 Air conditioner Type |
铜管外径mm Copper tube OD. |
保温管内径mm Insulation tube ID. |
常规壁厚及长度 Standard Wall Thickness, Length |
|
1 HP (1/4”+3/8”) |
Ф6.35＋Ф9.52 |
Ф9＋Ф12 |
铜管壁厚 Copper Pipe Thickness：0.3-1.0mm 保温管壁厚Insulation Thickness：8mm,10mm,….,20mm 长度Length：3M,4M,5M, ….. 30 Meters (Max). 壁厚和长度可按照客户需要生产，最长可做30米 Length and Thickness to customer’s option. |
|
1.5 HP (1/4”+1/2”) |
Ф6.35＋Ф12.7 |
Ф9＋Ф15 |
|
|
2.5 HP (1/4”+5/8”) |
Ф6.35＋Ф15.88 |
Φ9 + Φ19 |
|
|
3 HP (3/8”+5/8”) |
Ф9.52＋Ф15.88 |
Ф12＋Ф19 |
|
|
4 HP (3/8”+3/4”) |
Ф9.52＋Ф19.05 |
Ф12＋Ф22 |
|
|
5 HP (1/2”+3/4”) |
Ф12.7＋Ф19.05 |
Ф15＋Ф22 |
*Option可选附件: Wrap, Adhesive Tape, Wall Bushing, Tube Clamp, Screws, Putty, Drainage Tube
